DATASHEET

MACHINE DETAILS

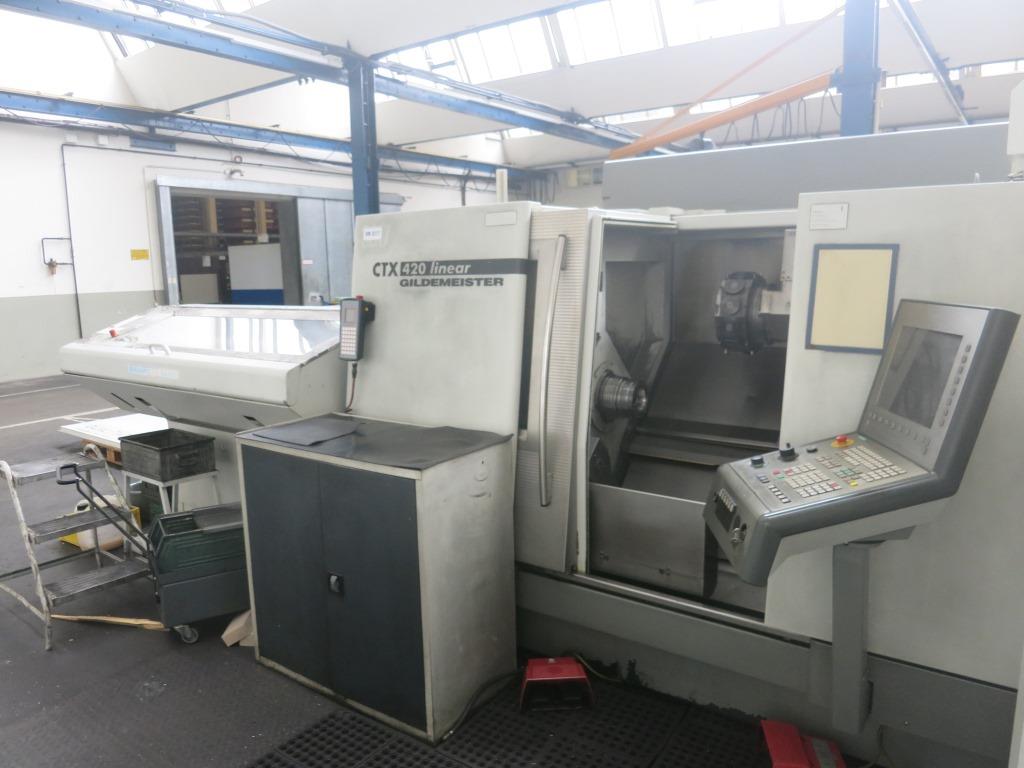

Machine no. 1077-03913
Machinetype CNC Lathe
Make GILDEMEISTER
Type CTX 420 Liner V 6
Year of construction 2007
Control CNC
Location Dorsten
Country of origin Deutschland
Delivery time sofort
Quotation ex works
Price

TECHNICAL DETAILS

turning diameter 325 mm
turning length 600 mm
control Siemens
type 840D
Turret 12-fold, 12 stations
live tooling
turning speeds 5000 U/min
power capacity 25 kW
y-axis mm
c-axis
total power requirement 35 kW
weight of the machine ca. 6,5 t
dimensions of the machine ca. 3,5x2,5x2,1 m

DESCRIPTION



Tool speed: 4500 rpm
X-axis rapid traverse: 60 m/min
Z-axis rapid traverse: 45 m/min

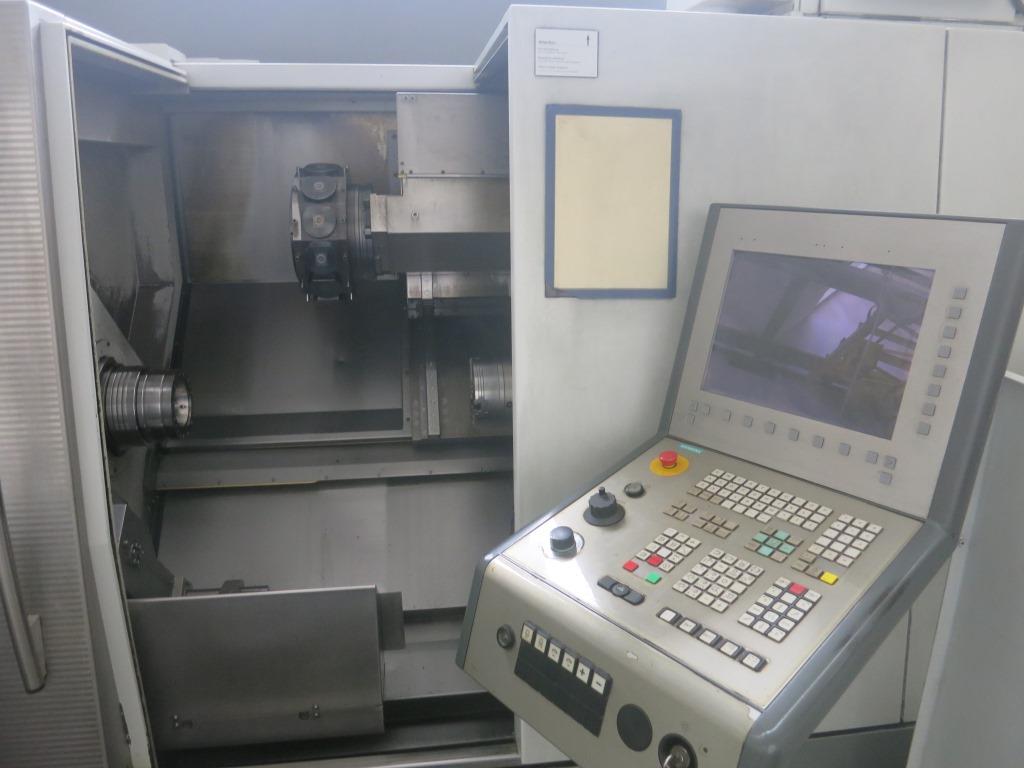

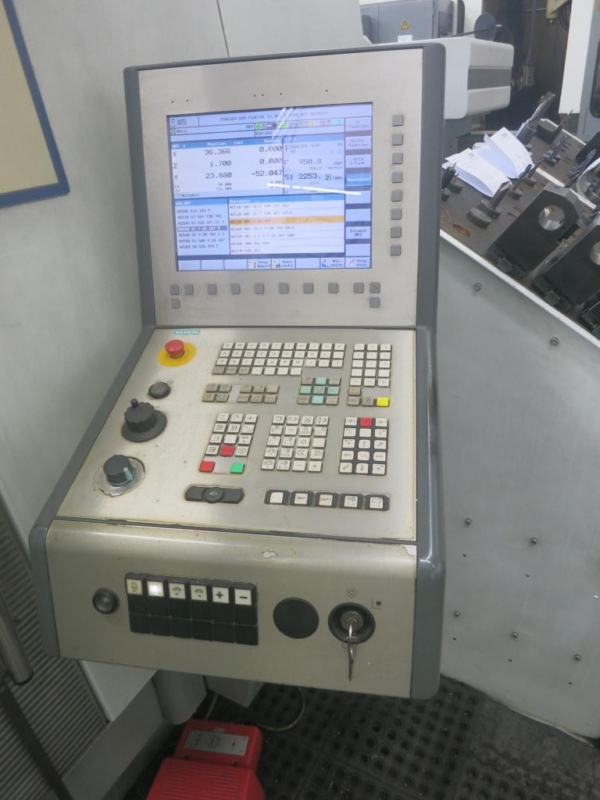

Machine with Siemens 840 D powerline with Shopturn
- C and Y axes, driven tools

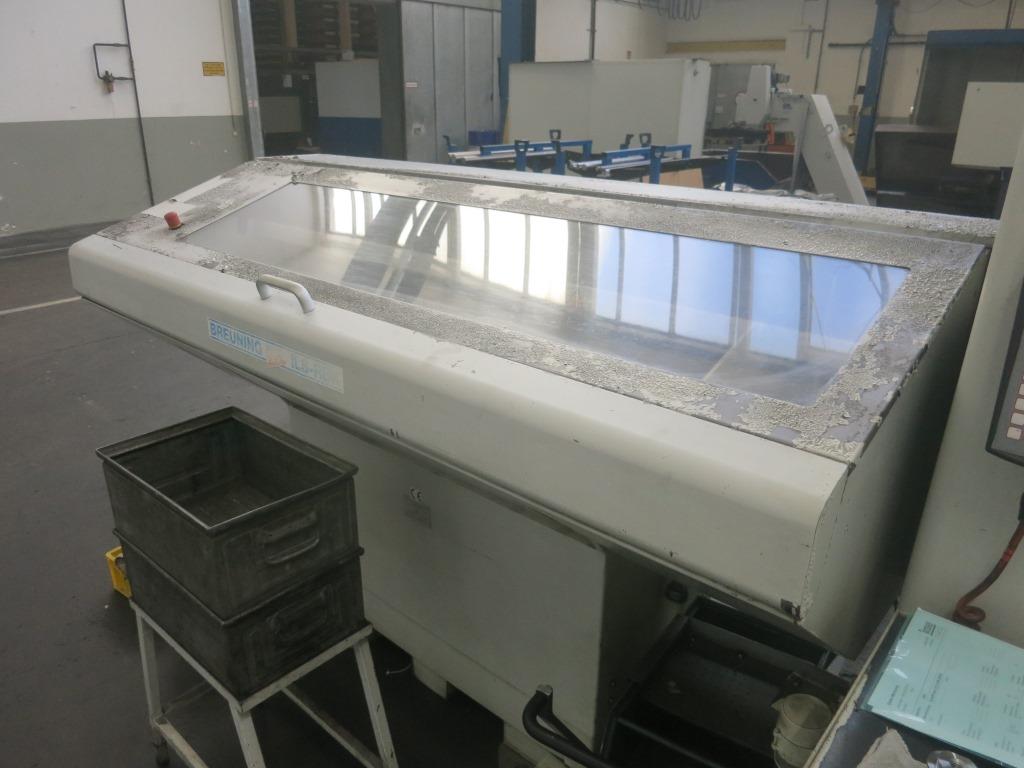

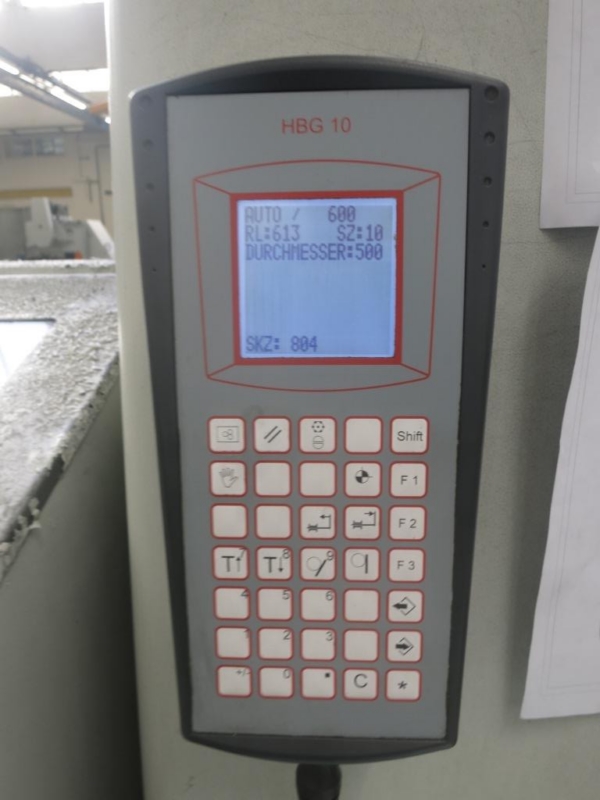

- IRCO ILS-RBK bar loader

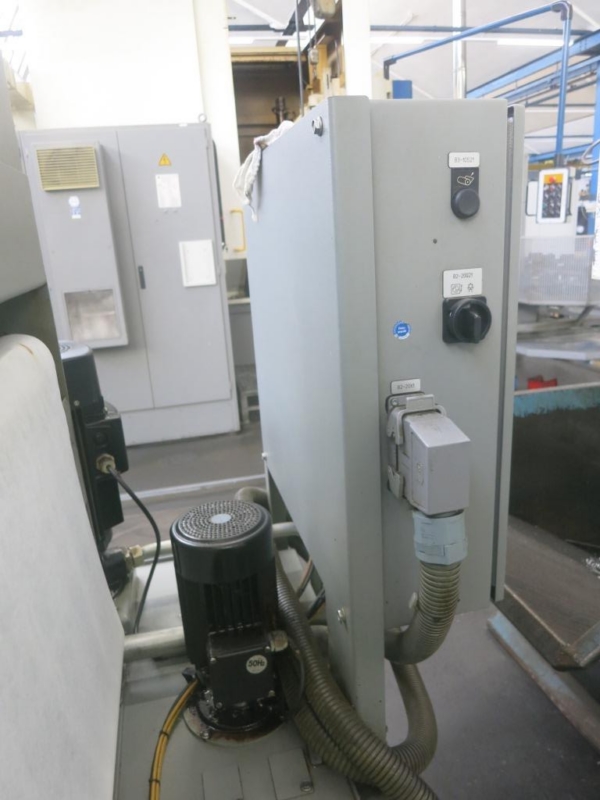

- Coolant system with internal coolant supply

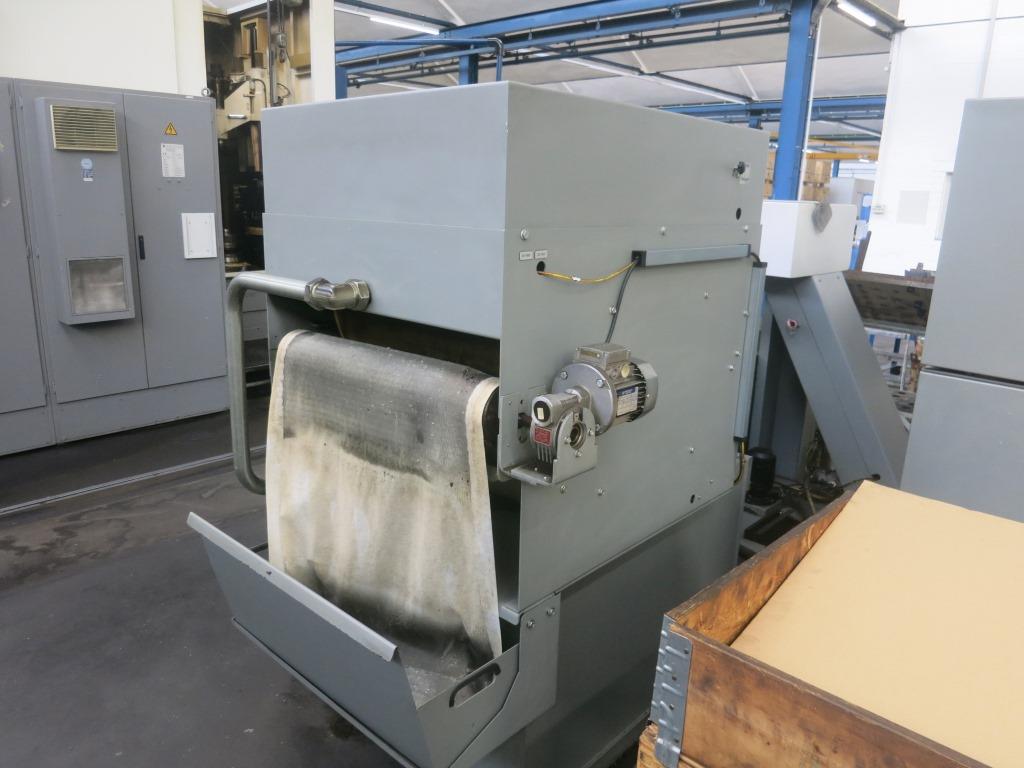

- Paper belt filter
- Partial hollow clamping device
- Oil mist separator

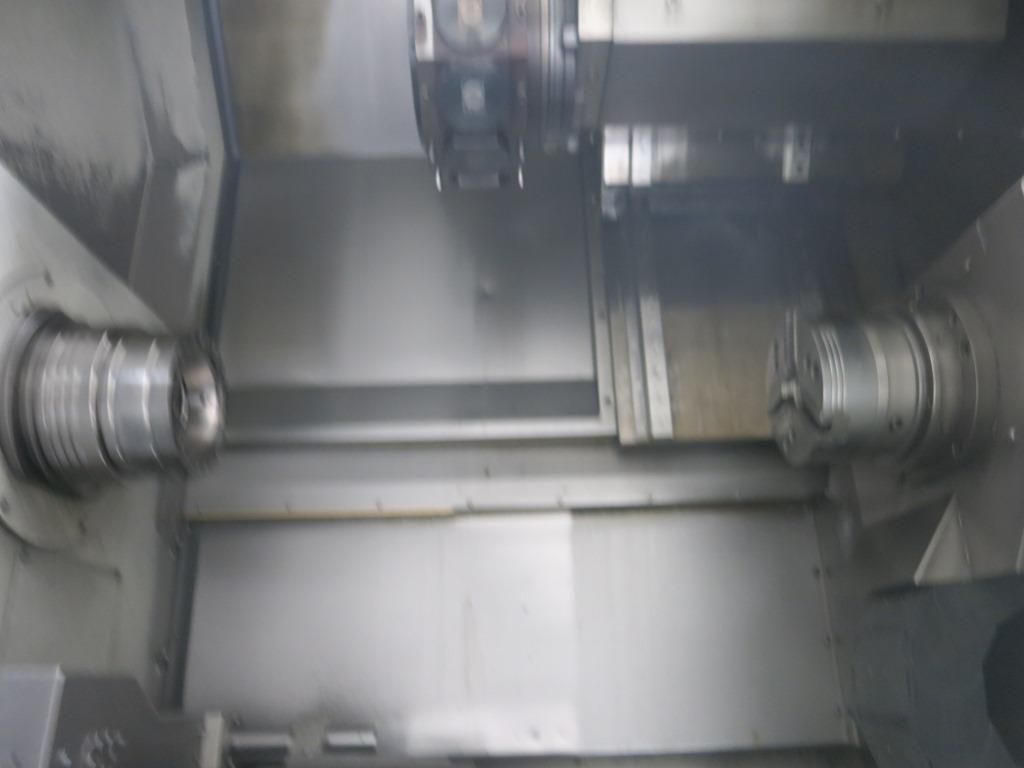

- Counter spindle
- Parts catcher

The tech. Data are manufacturer or operator information and therefore non-
binding. We reserve the right to prior sale; Our terms and conditions of sale
apply exclusively.

About us More
than 400 of our own machines in stock
Over 15,000 m² of storage space, 70 t crane capacity
More than 10,000 items and accessories for your workshop

If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment.

We look forward to your visit.
Your Markus Hirsch Team


Changes and errors in the technical details and information reserved.

Documents & videos

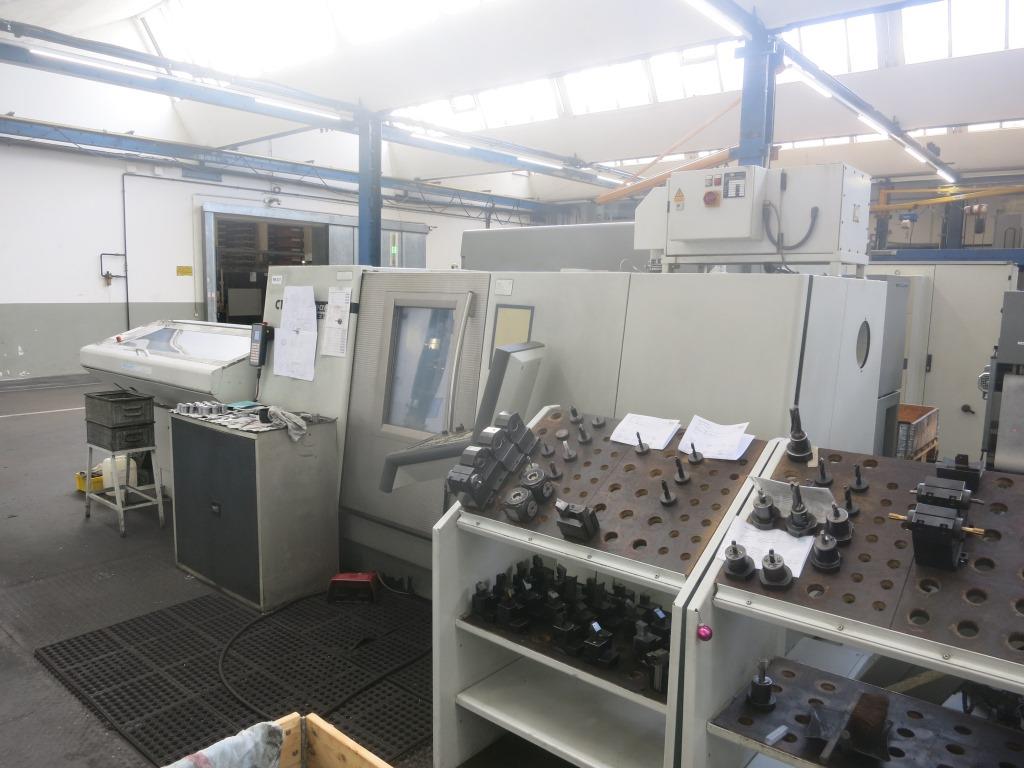

# 1077-03913 - CNC Lathe GILDEMEISTER CTX 420 Liner V 6
